How to set up Outline using Docker

Outline Wiki: Self-Hosted Knowledge Base with Slack Integration

What is Outline?

Outline is a modern team knowledge base and wiki that helps teams share knowledge, stay in sync, and collaborate effectively. It’s an open-source alternative to platforms like Notion, focused purely on documentation and internal wikis.

---

Features

• Modern editing experience with markdown and slash commands.
• Integration-ready: Slack, Figma, Loom, and others.
• Internationalization: 17 languages, RTL support.
• Open Source: Self-host and own your data.
• Real-time Collaboration: Seamless editing by multiple users.
• Dark Mode for comfortable viewing.
• Fine-grained Access Control for team management.

---

Prerequisites

• Linux VM where you can host the application
• Docker and Dockge installed.
• Slack (used for authentification)

---

Installing Docker

Follow the official Docker install guide for Ubuntu: https://docs.docker.com/engine/install/ubuntu/#install-using-the-repository

sudo apt-get update
sudo apt-get install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc
echo   "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu   $(. /etc/os-release && echo "$VERSION_CODENAME") stable" |   sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update

Install the docker packages:

sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

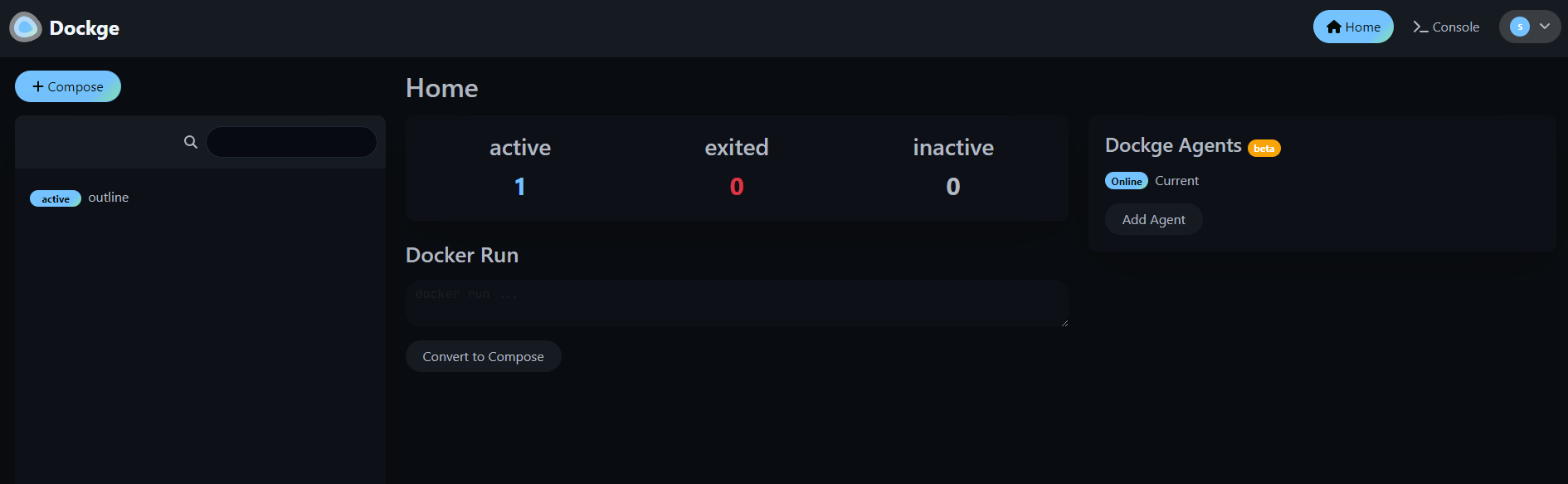

Installing Dockge

mkdir -p /opt/stacks /opt/dockge
cd /opt/dockge
curl https://raw.githubusercontent.com/louislam/dockge/master/compose.yaml --output compose.yaml
docker compose up -d

The default port in the YAML file is 5001 but you can change it if you want with any other port. (I’m using the default 5001 port)

Example Dockge compose.yaml:

version: "3.8"
services:
  dockge:
    image: louislam/dockge:1
    restart: unless-stopped
    ports:
      - 5001:5001
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock
      - ./data:/app/data
      - /opt/stacks:/opt/stacks
    environment:
      - DOCKGE_STACKS_DIR=/opt/stacks

---

Setting up Slack App for Authentication

1. Go to https://api.slack.com/apps → Create App.
   •

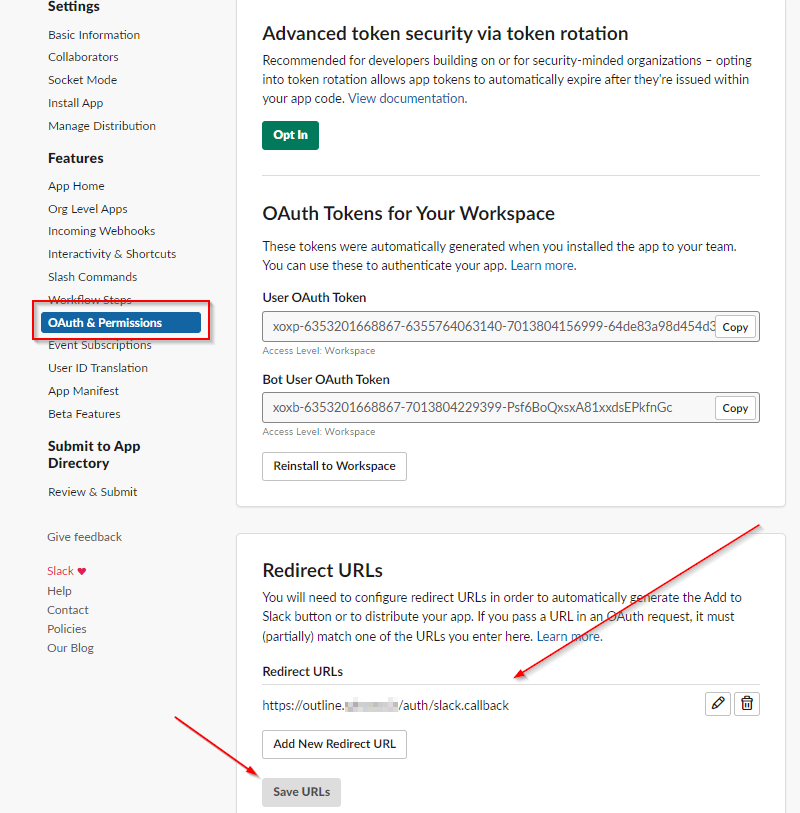

2. Configure OAuth & Permissions:
   • Redirect URL: https://yourdomain.com/auth/slack.callback
   • Scopes:
     • identity.avatar
     • identity.basic
     • identity.email
     • identity.team

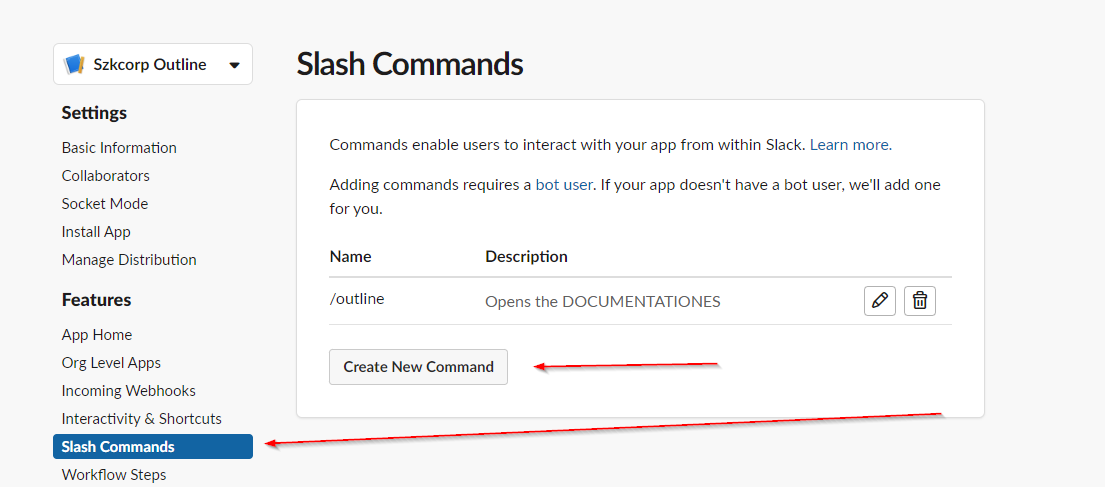

3. Add a Slash Command:
   • /outline
   • URL: https://outline.yourdomain.com/api/hooks.slack

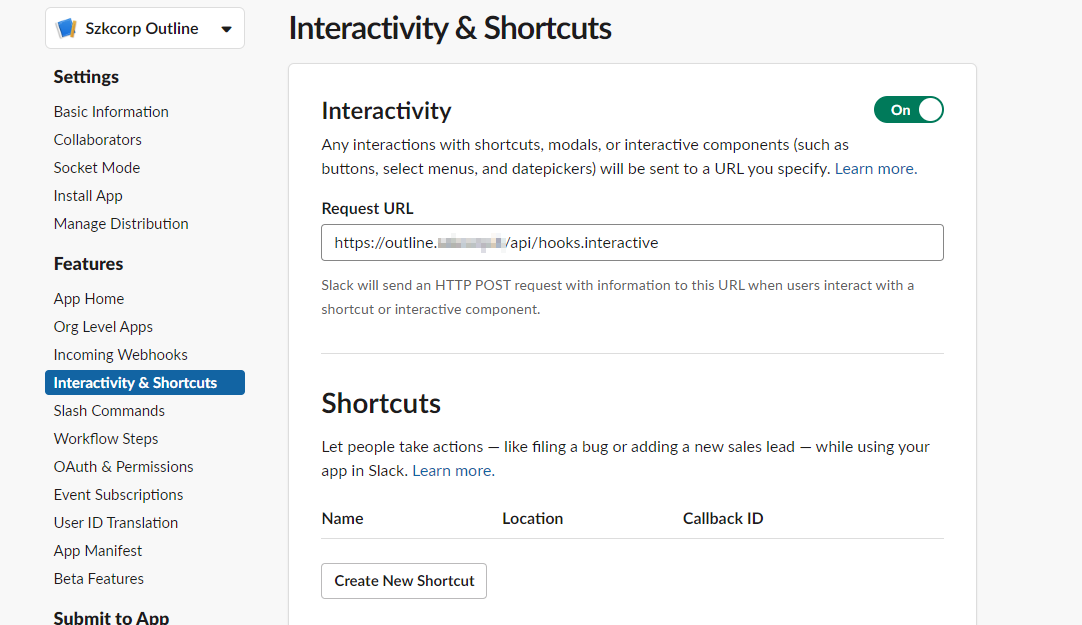

4. Enable Interactivity:
   • URL: https://outline.yourdomain.com/api/hooks.interactive
   •

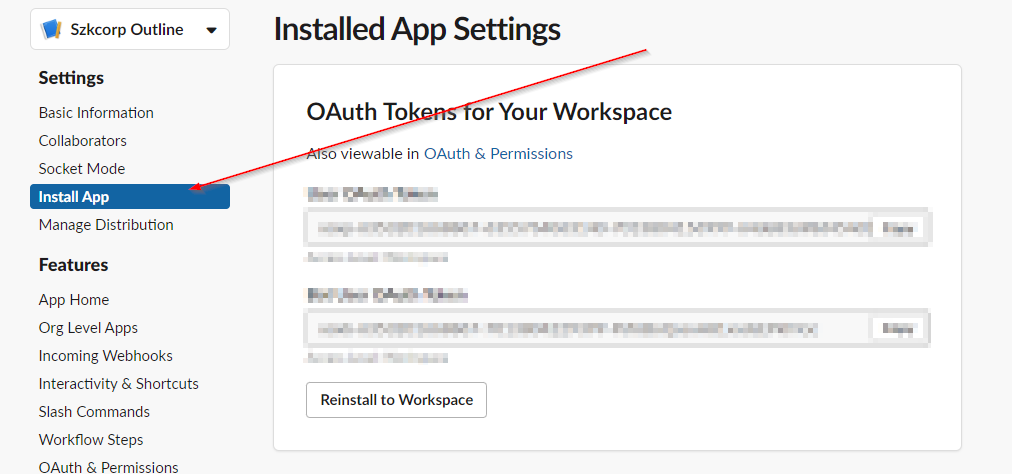

5. Install the app and note the App ID and Verification Token
   • Install app
   •

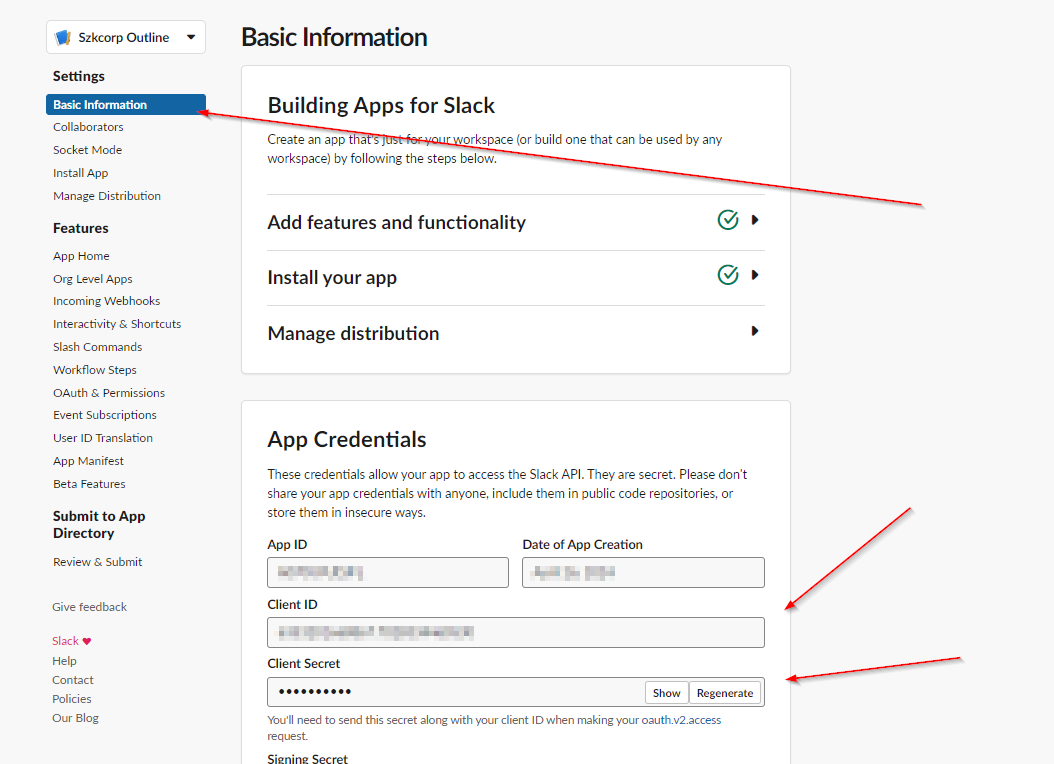

6. Visit the Basic Information page from the left sidebar and copy App ID and Verification Token values for the slack app integration. We will need them later.

   •

Compose File for Outline

version: "3.8"
services:
  https-portal:
    image: steveltn/https-portal
    ports:
      - 80:80
      - 443:443
    links:
      - outline
    restart: always
    volumes:
      - https-portal-data:/var/lib/https-portal
    environment:
      DOMAINS: "outline.yourdomain.com -> http://outline:3000"
      STAGE: production
      WEBSOCKET: "true"
      CLIENT_MAX_BODY_SIZE: "0"

  outline:
    image: docker.getoutline.com/outlinewiki/outline:latest
    ports:
      - 3000:3000
    volumes:
      - ./storage-data:/var/lib/outline/data
    depends_on:
      - postgres
      - redis
    environment:
      PGSSLMODE: disable
      SECRET_KEY: ${SECRET_KEY}
      UTILS_SECRET: ${UTILS_SECRET}
      DATABASE_URL: postgres://${POSTGRES_USER}:${POSTGRES_PASSWORD}@${SERVER_IP}:5432/${POSTGRES_DB}
      REDIS_URL: redis://${SERVER_IP}:6379
      URL: ${URL}
      PORT: ${PORT}
      FILE_STORAGE: local
      FILE_STORAGE_LOCAL_ROOT_DIR: /var/lib/outline/data
      FILE_STORAGE_UPLOAD_MAX_SIZE: 26214400
      SLACK_CLIENT_ID: ${SLACK_CLIENT_ID}
      SLACK_CLIENT_SECRET: ${SLACK_CLIENT_SECRET}
    restart: unless-stopped

  redis:
    image: redis
    ports:
      - 6379:6379
    volumes:
      - ./redis.conf:/redis.conf
    command: ["redis-server", "/redis.conf"]
    restart: unless-stopped

  postgres:
    image: postgres
    ports:
      - 5432:5432
    volumes:
      - ./database-data:/var/lib/postgresql/data
    environment:
      POSTGRES_USER: ${POSTGRES_USER}
      POSTGRES_PASSWORD: ${POSTGRES_PASSWORD}
      POSTGRES_DB: ${POSTGRES_DB}
    restart: unless-stopped

volumes:
  https-portal-data:

---

.env File Example

SERVER_IP=your_hosting_server_ip
POSTGRES_USER=user
POSTGRES_PASSWORD=pass
POSTGRES_DB=outline
SECRET_KEY=$(openssl rand -hex 32)
UTILS_SECRET=$(openssl rand -hex 32)
URL=https://outline.yourdomain.com
PORT=3000
SLACK_CLIENT_ID=your_slack_client_id
SLACK_CLIENT_SECRET=your_slack_client_secret

In here you see you have:

• SERVER_IP which is the public IP of the server, I couldn’t make this work with the localhost you can try.
• Postgres users and passwords
• secrets for outline which are generated with: openssl rand -hex 32
• URL and Port - here you will use what you like for your application
• Slack Details - the Client ID and Client Secret generated earlier need to be added here.

Replace values accordingly. Use actual IP/domain for SERVER_IP. Generate secrets using openssl rand -hex 32.

---

DNS and Port Forwarding

• Forward ports 443 and 80 on your router.
• Set an A record in your domain’s DNS to your VM’s IP address.

---

Launch Stack

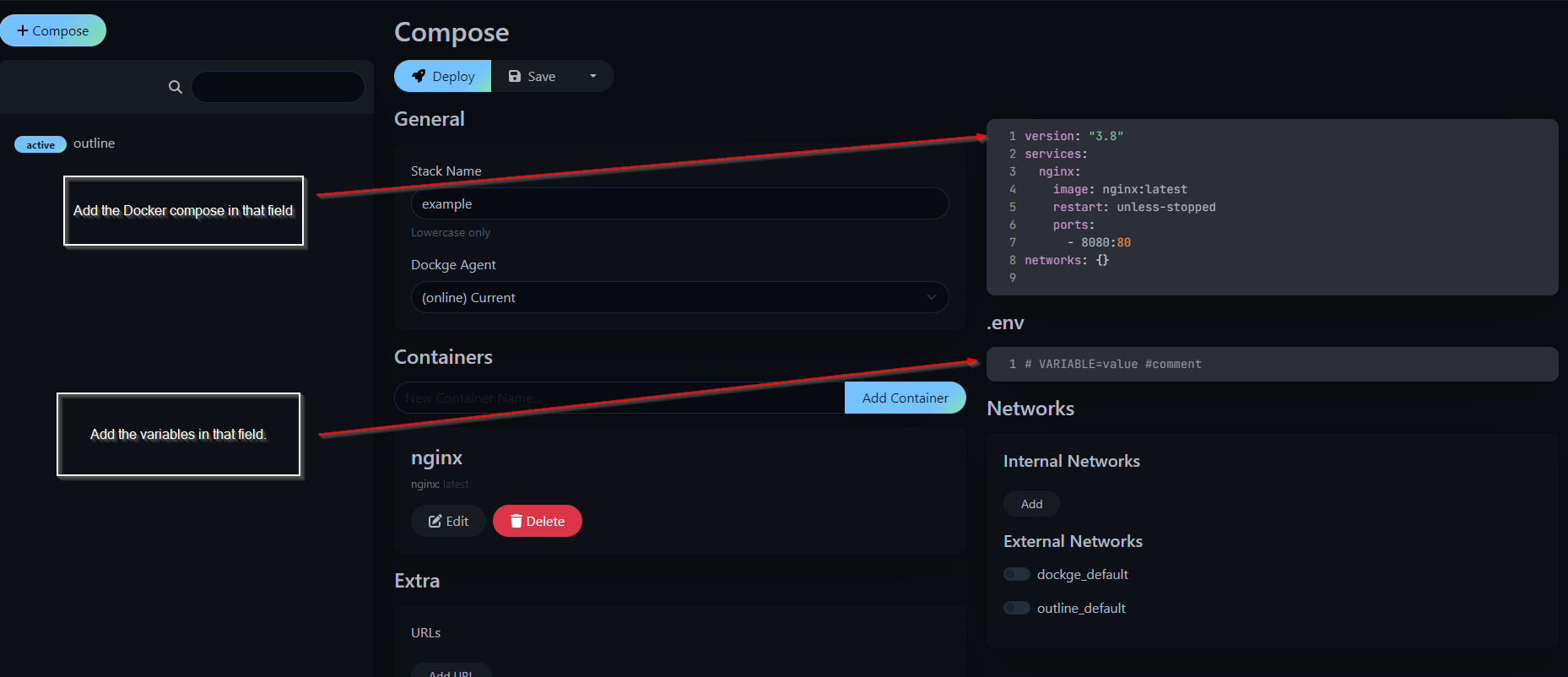

1. Use Dockge UI to deploy the stack.
2. Complete the .env file in the Dockge GUI.
3. Deploy the stack.
4. Check containers using:

sudo docker ps -a

If you want to add images you will need to use the following commands to give permisions to the nodejs user:

cd /opt/stacks/outline
chown 1001 ./storage-data

---

Worth mentioning

1. You need to have port forwarding for the VM.
2. You need to have an A record pointing at your VM from your DNS.

And that’s about it, now you can use outline, test it and see how it works.

---

Resources

• Outline Docs: https://docs.getoutline.com/s/hosting/doc/docker-7pfeLP5a8t
